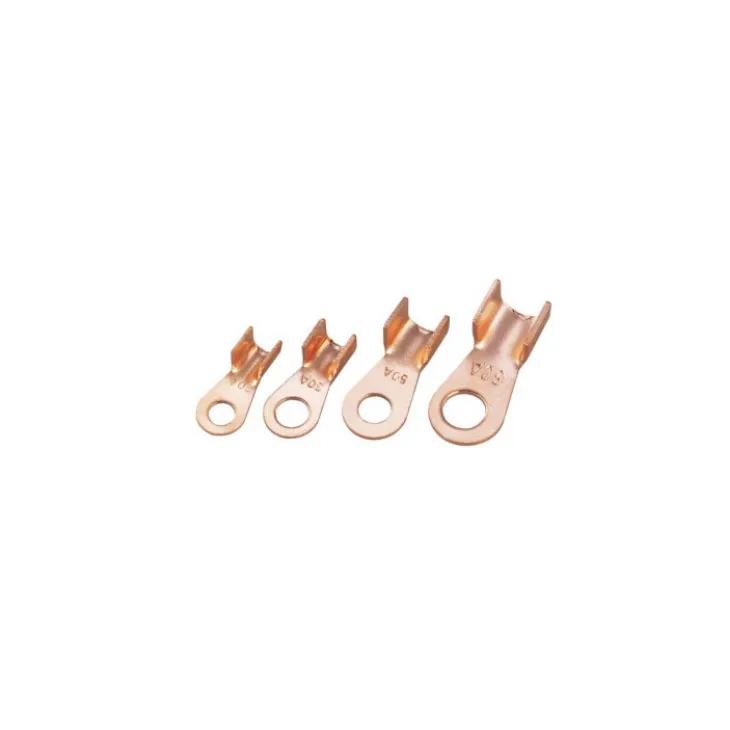

The Copper Open Connecting Terminal provides a more flexible and convenient electrical wiring solution with its open connection method. Its sturdy structure and excellent conductivity make it widely used in the maintenance, upgrade and temporary wiring of electrical equipment.

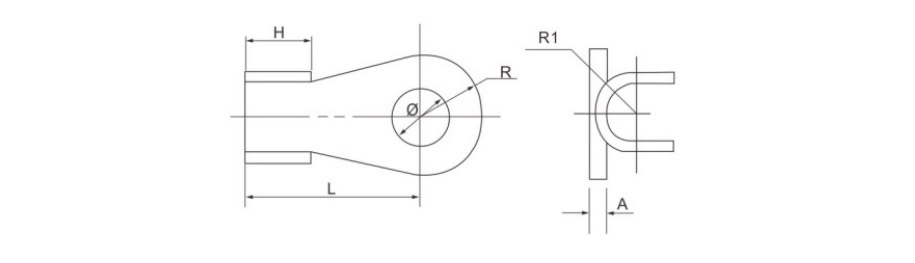

| Type | D | d | D1 | L1 | L2 | L |
| OT-10A | 5.2 | 6 | 14.5 | 4.5 | 2 | 0.8 |
| OT-20A | 6.2 | 7 | 17 | 5.5 | 2.5 | 1 |
| OT-30A | 6.2 | 8.2 | 19 | 5.8 | 3.2 | 1.2 |
| OT-40A | 6.2 | 9 | 19.5 | 6.2 | 3.5 | 1.2 |
| OT-50A | 6.2 | 9 | 21.5 | 6.5 | 3.5 | 1.2 |
| OT-60A | 8.2 | 10 | 23 | 7 | 4 | 1.4 |
| OT-80A | 8.2 | 11 | 25 | 8 | 4.5 | 1.5 |
| OT-100A | 8.2 | 12 | 29 | 8.5 | 5 | 1.5 |
| OT-150A | 10.2 | 12 | 31 | 9 | 5.5 | 1.6 |
| OT-200A | 10.2 | 14 | 33 | 10 | 6 | 1.7 |
| OT-250A | 10.2 | 15.5 | 36 | 10.5 | 6.5 | 2 |
| OT-300A | 12.2 | 16 | 40 | 11.5 | 7 | 2 |
| OT-400A | 12.2 | 18 | 43 | 13 | 8 | 2.2 |
| OT-500A | 14.2 | 20 | 46 | 14.5 | 8.5 | 2.4 |
| OT-600A | 16.2 | 22 | 50.5 | 16 | 10.5 | 2.8 |
| OT-800A | 18.2 | 26 | 61 | 17.5 | 12.5 | 3.2 |
| OT-1000A | 18.2 | 33 | 66 | 20.5 | 15.5 | 3.8 |
