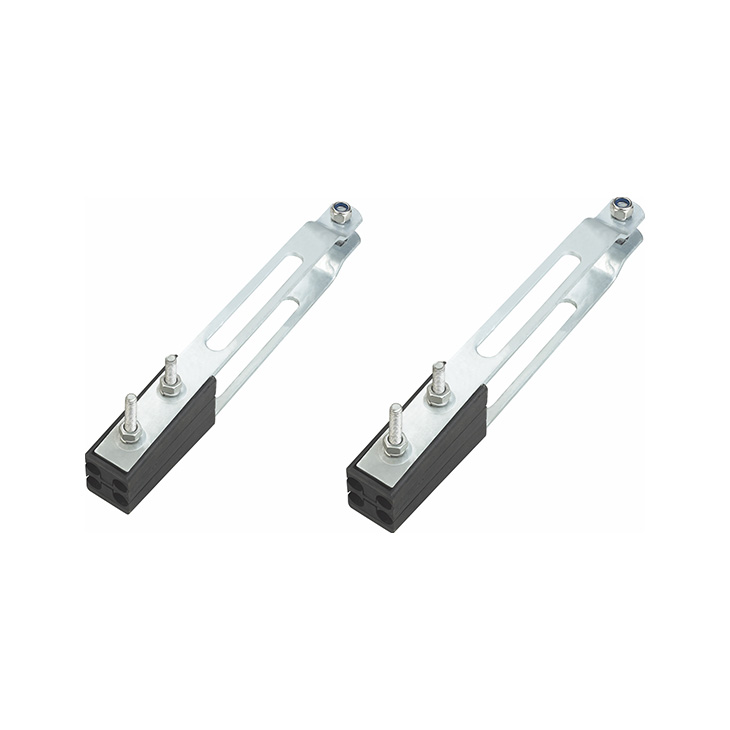

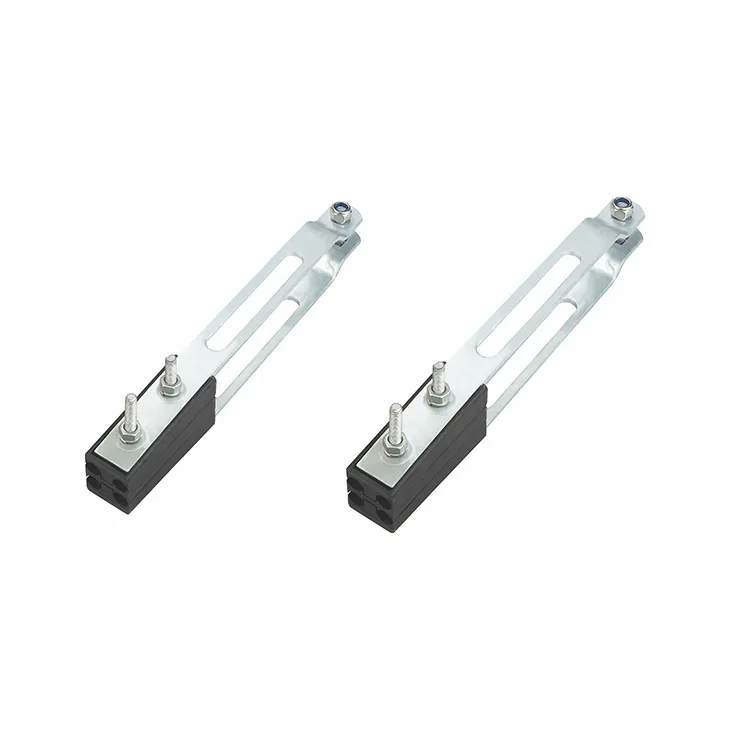

• TC tension clamps are applicable to four-core self-supporting low voltage aerial cables. These clamps are used for anchoring and tightening insulated conductors.
• Iron braces are made of steel strap with surface galvanized.
• Wedges are made of weather resistant and anti-UV material with high mechanical strength.
• Equipped with bolts.
• Strong springs between wedges facilitate the insertion of conductors.
• No loose parts could fall off during installation.
|
Type |
Conductor size (mm²) |
Cable Diameter (mm) |
Failure Load (kN) |
Pack (pcs) |
|
TC16-50/4 |
16-50 |
7-12 |
14.4 |
18 |
|
TC70-95/4 |
70-95 |
13-15.7 |
27.4 |
12 |
|
TC95-150/4 |
95-150 |
14.2-18.6 |
43.2 |
12 |
|
*TC50-120/4 |
50-120 |
10.8-16.7 |
20 |
12 |
Note: * TC50-120/4 is equipped with shear head bolts.
