Tension/Suspension/Anchoring clamps provide physical and mechanical support to cables and conductors in power transmission lines for power distribution.

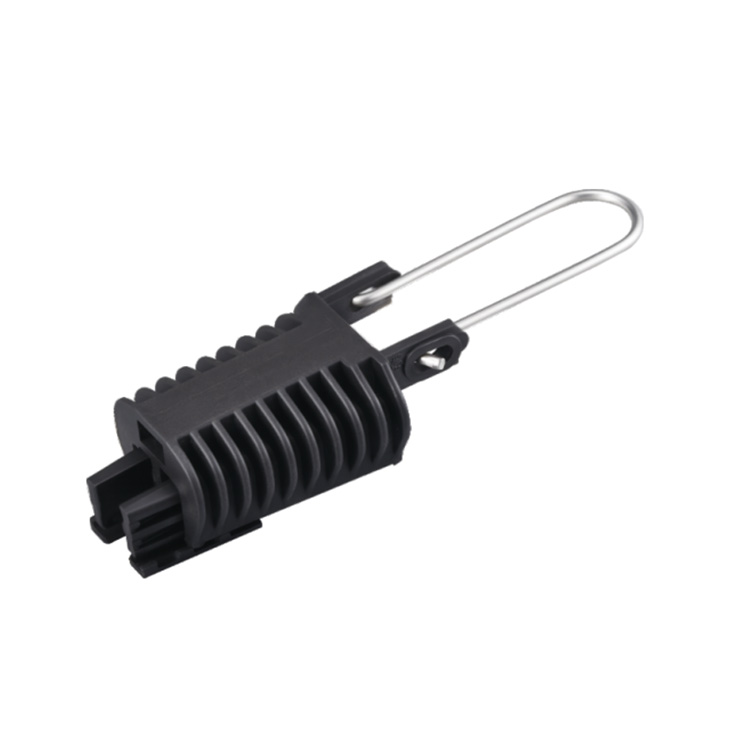

PC Series Strain Clamps for service tensions for low-voltage aerial-bundled conductors (LV ABC). The PC Series is suitable for 2, 3 and 4 core twisted cables.
Specifications
• Cable Range 2 x 6mm² to 4 x 35mm²
• Minimum failing load 2.5kN
• Stainless steel bail
• Fibreglass reinforced UV stablilised nylon
• No safety clip
|
Product Number |
Description |
Cable Size & Configuration (mm²) |
Max Failing Load (kN) |
|
PC35 |
For LVABC XLPE insulated suitable for 2, 3, 4 core bundle, twisted or flat (use blanking for non used cores). Stainless steel bail |
2 x 6 to 4 x 35 |
2.5 |
