• JBGA and JBGB tension clamps are used to anchor and tighten low voltage aerial cables with insulated neutral messenger.

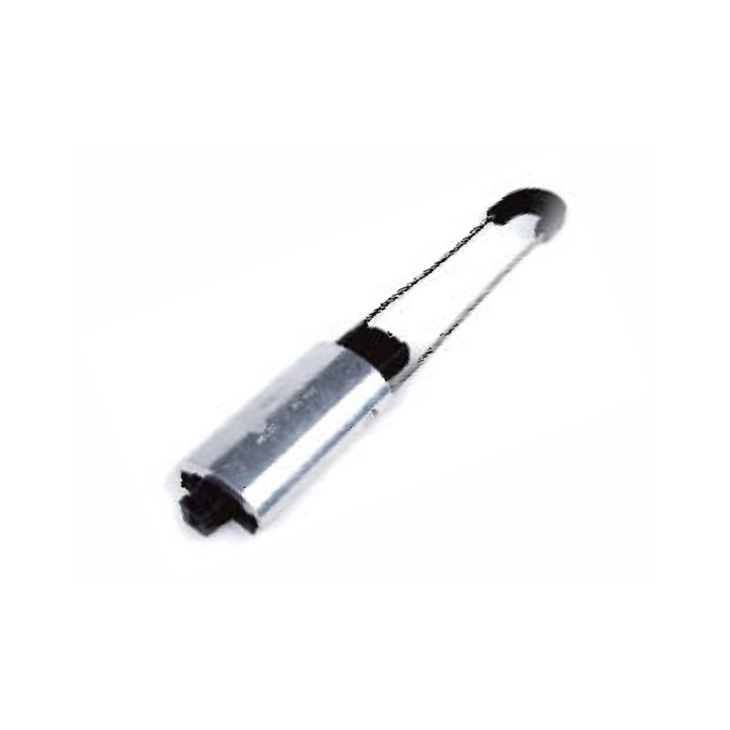

• JBGA: Clamp body is made of corrosion resistant extruded aluminuim alloy; Metal suport is made of stainless steel;
• Wedges are made of weather resistant and anti-UV material with high mechanical strength.

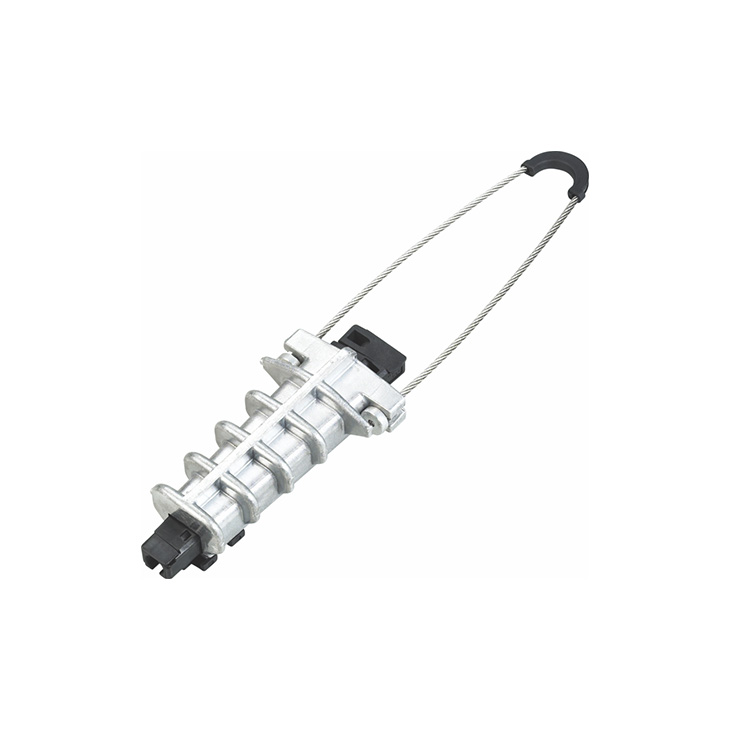

• JBGB: Clamp body is casted of corrosion resistant aluminuim alloy with high mechanical strength and metal support is made of stainless steel. Wedges are made of weather resisntant and anti-UV material with high mechanical strength.
• Standard: EN 50483-3, NFC33-041
Type |
Conductor size (mm²) |
Cable Diameter (mm) |
Failure Load (kN) |
Pack (pcs) |
JBGA25-35/1000 |
25-35 |
8.5-11 |
10 |
9X4 |
JBGA54.6-70/1500 |
54.6-70 |
12-14 |
15 |
8X4 |
JBGA70-95/2000 |
70-95 |
12.9-16.1 |
20 |
6X4 |
JBGB25-35/1000 |
25-35 |
8.5-11 |
10 |
6X4 |
JBGB54.6-70/1500 |
54.6-70 |
12-14 |
15 |
5X4 |
