The SPDB 185/35-16-10 1/2-5-4 junction box is a rugged and versatile electrical enclosure that simplifies wire distribution and termination. Made from durable materials, this enclosure can withstand harsh environments and ensure long-lasting performance. Its modular design accommodates a variety of cable sizes and configurations, allowing wires to be organized and managed efficiently.
| Maximum current | 400A | |||
| Dimensions | Technical data | |||
| Width/thickness/height NS 35:7.5/NS 35:15 | Length | Width | Height NS 35:7.5 | |
| 96 | 46.8 | 51.5 | ||
| Parameters according to standard IEC 60 947-7-1 | ||||
| Rated voltage | V | 690 | ||
| Rated current | A | 400 | ||
| Rated input/output cross section | (mm²) | 185/35-16-10 | ||
| Rated impulse voltage/pollution degree | 2.5kV/3 | |||
| Flammability grade according to standard UL94 | V-0 | |||
| More technical data | ||||
| Short-circuit current (peak value) | 51 | |||
| Short-circuit current>1S | 24.5 | |||
| Input | A | |||
| Number of input terminal connection points | 1 | |||
| "e" single-strand hard wire H07V-U | (mm²) | 95...185 | ||
| "m" multi-strand hard wire H07V-R | (mm²) | 95...185 | ||
| "f" soft wire H07V-K | (mm²) | 95...185 | ||
| "f" soft wire with pipe end in accordance with DIN46228-1 H07V-R | (mm²) | 95...185 | ||
| "f" soft wire with pipe end in accordance with DIN46228-1 plastic sleeve H07V-R |
95...185 | |||
| Diameter | mm | 19 | ||
| Tightening torque | (Nm) | 25 | ||
| Crimp screw specifications | M16 | |||
| Stripping length | (mm) | 27...29 | ||
| Screwdriver blade size | SK-S 8.0 | |||
| Output | A | B | C | |
| Number of output terminal connection points | 2 | 5 | 4 | |
| e Single-strand rigid wire H07V-U | (mm²) | 2.5...35 | 2.5...16 | 2.5...10 |
| m Multi-strand rigid wire H07V-R | (mm²) | 2.5...35 | 2.5...16 | 2.5...10 |
| f Flexible wire H07V-K | (mm²) | 2.5...35 | 2.5...16 | 2.5...10 |
| f Flexible wire with pipe end in accordance with DIN46228-1 H07V-R | (mm²) | 2.5...35 | 2.5...16 | 2.5...10 |
| f Flexible wire with pipe end in accordance with DIN46228-1 H07V-R | 2.5...35 | 2.5...16 | 2.5...10 | |
| Diameter | mm | 9 | 6.8 | 6.1 |
| Tightening torque | (Nm) | 3.5 | 2 | 2 |
| Crimp screw specifications | M10 | M6 | M5 | |
| Stripping length | (mm) | 10...12 | 10...12 | 10...12 |
| Screwdriver blade size/hexagonal wrench size | SK-S 5.0 | SK-S 4.0 | SK-S 3.0 | |

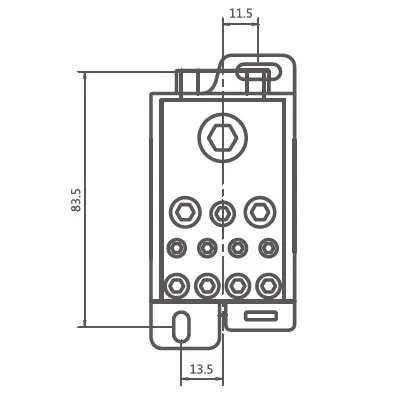

| Installation Dimensions |  |
|||
