• Main line : overhead insulated Cu or Al
• Tap line : bare Cu, Al or Steel.
• Used to tap an bare conductor from a insulated overhead line.
• Live or dead line work on contact.
|
SMS Item No. |
Insulates main Cu/AI |
Bare tap Cu/AI |
Screws |
H |
Tightening torque |
|
mm² |
mm² |
mm |
Nm |
||
|

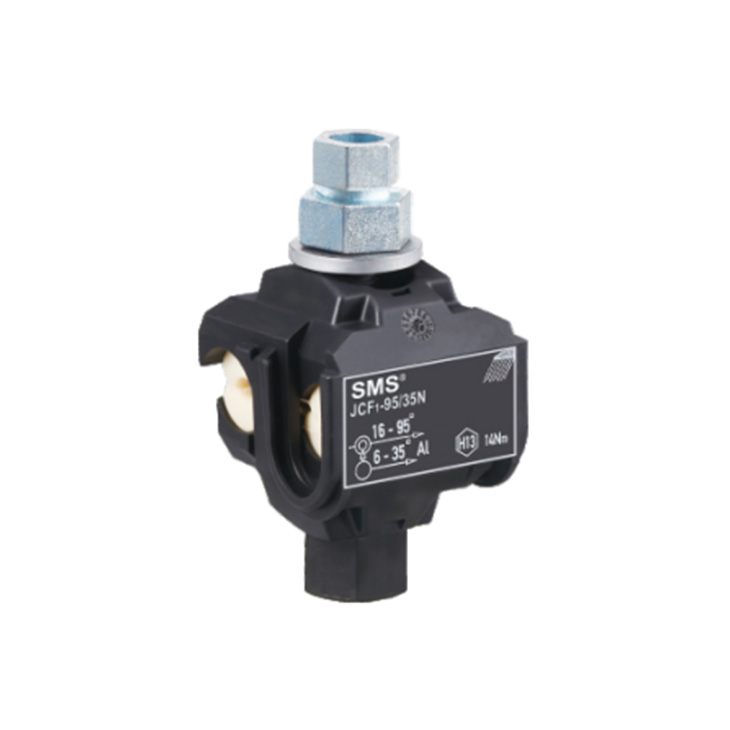

JCF1-95/35N |
16-95 |
6-35 |
1xM8 |
13 |
14 |
|

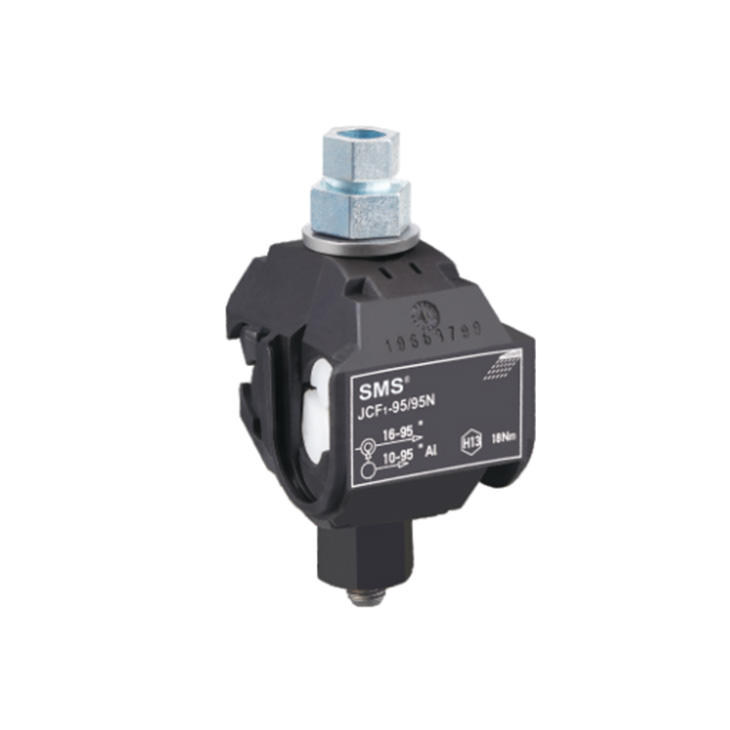

JCF1-95/95N |
16-95 |
10-95 |
1xM8 |
13 |
18 |
|

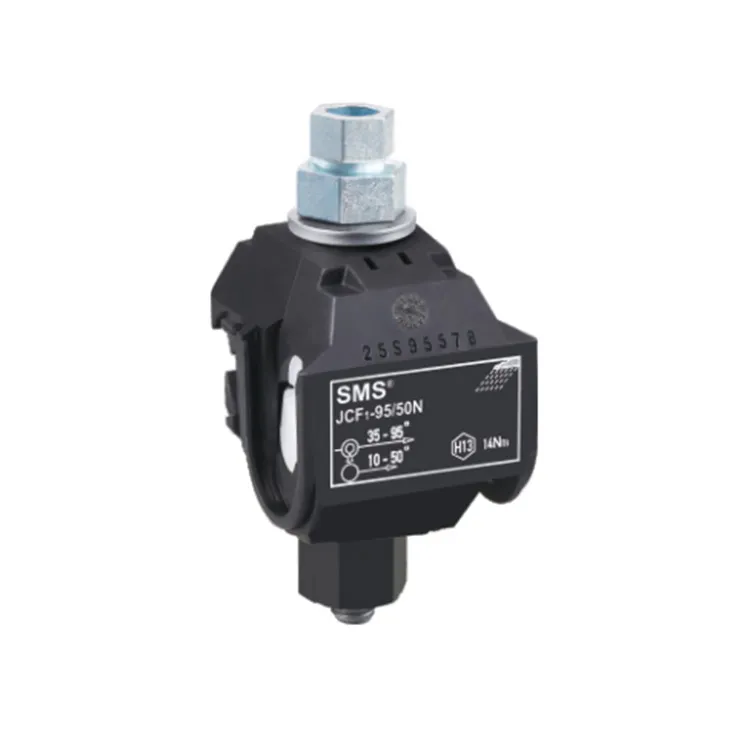

JCF1-95/50N |
35-95 |
10-50 |
1xM8 |
13 |
14 |
• Main line : overhead insulated Cu or Al
• Tap line : bare Cu, Al or Steel.
• Used to tap an bare conductor from a insulated overhead line.
• Live or dead line work.
|
SMS Item No. |
Insulates main Cu/AI |
Bare tap Cu/AI |
Screws |
H |
Tightening torque |
|
mm² |
mm² |
mm |
Nm |
||
|

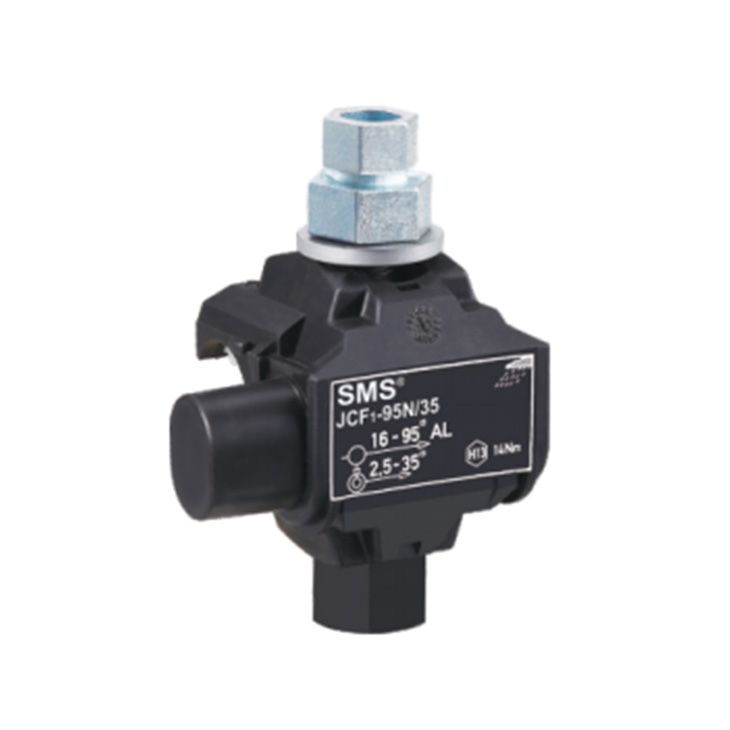

JCF1-95N/35 |
16-95 |
2,5-35 |
1xM8 |
13 |
14 |
|

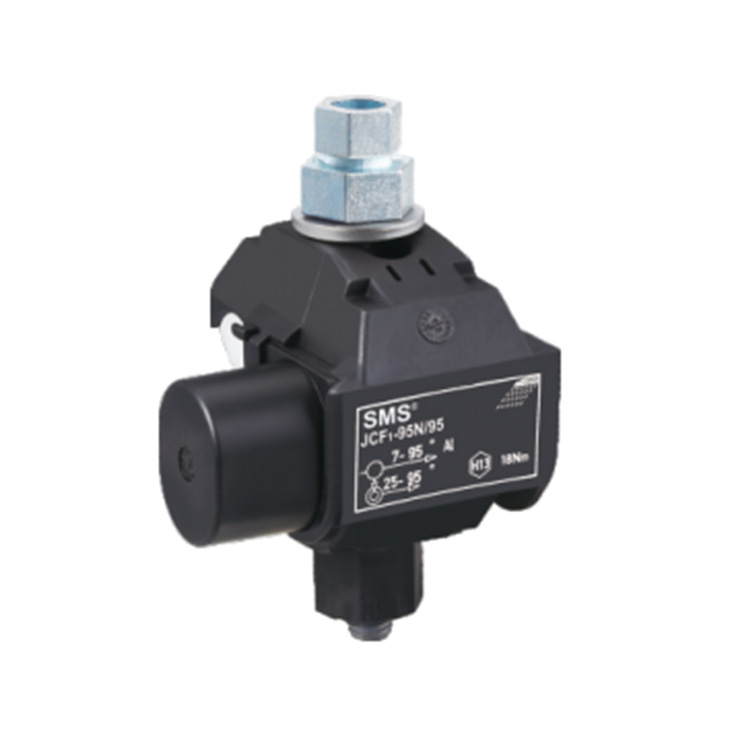

JCF1-95N/95 |
7-95 |
25-95 |
1xM8 |
13 |
18 |
|

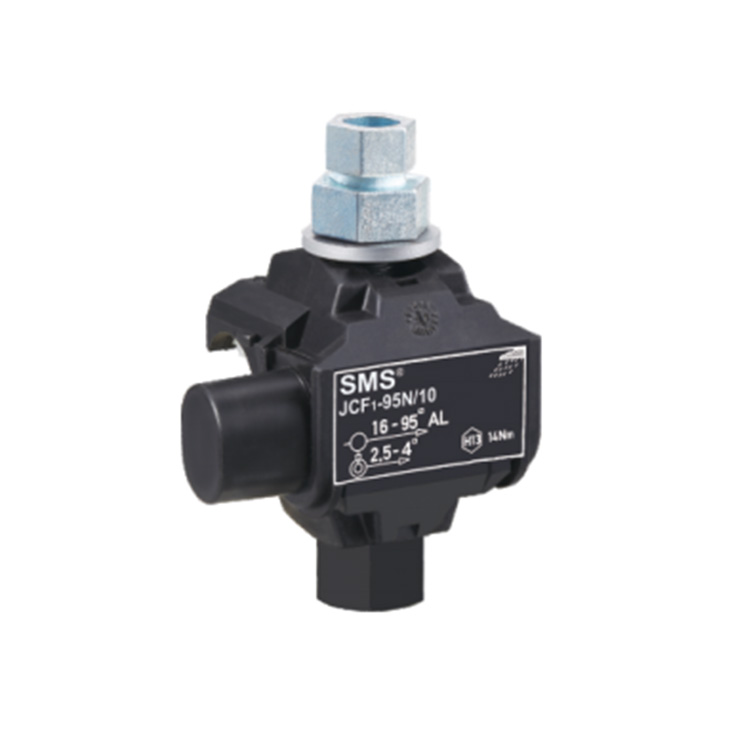

JCF1-95N/10 |
16-95 |
2,5-4 |
1xM8 |
13 |
14 |
