DLS double holes aluminum terminals are designed for safe and reliable electrical connections. They are made of high-grade aluminum, which has excellent electrical conductivity and durability. Ideal for a wide range of applications, these terminals feature dual holes for added strength and stability, ensuring a safe and efficient connection every time.

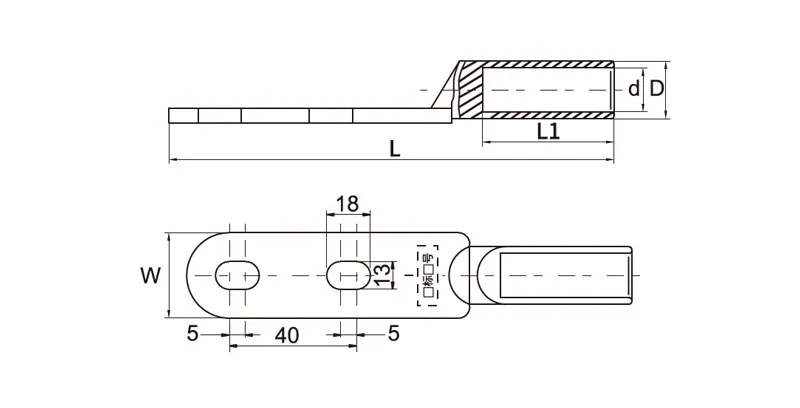

| Item No. | Sizes (mm) | ||||
| L | L1 | W | D | d | |
| DLS-10 | 110 | 30 | 19 | 12 | 5.5 |
| DLS-16 | 112 | 32 | 19 | 12 | 6 |
| DLS-25 | 114 | 34 | 19 | 12 | 7 |
| DLS-35 | 120 | 40 | 19 | 14 | 8.5 |
| DLS-50 | 127 | 42 | 23 | 16 | 9.5 |
| DLS-70 | 138 | 47 | 26 | 18 | 11.5 |
| DLS-95 | 144 | 50 | 28 | 21 | 13.5 |
| DLS-120 | 148 | 53 | 30 | 23 | 15 |
| DLS-150 | 156 | 55 | 34 | 25 | 16.5 |
| DLS-185 | 165 | 58 | 37 | 27 | 18.5 |
| DLS-240 | 170 | 60 | 40 | 30 | 21 |
| DLS-300 | 179 | 65 | 40 | 34 | 23 |
| DLS-400 | 190 | 70 | 50 | 42 | 26.5 |
| DLS-500 | 210 | 75 | 50 | 29.5 | |
