Application

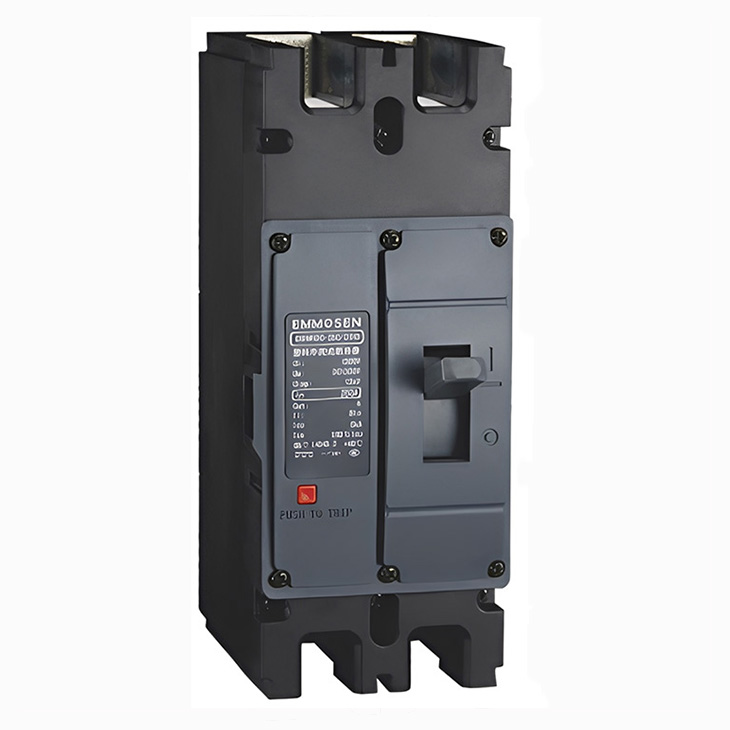

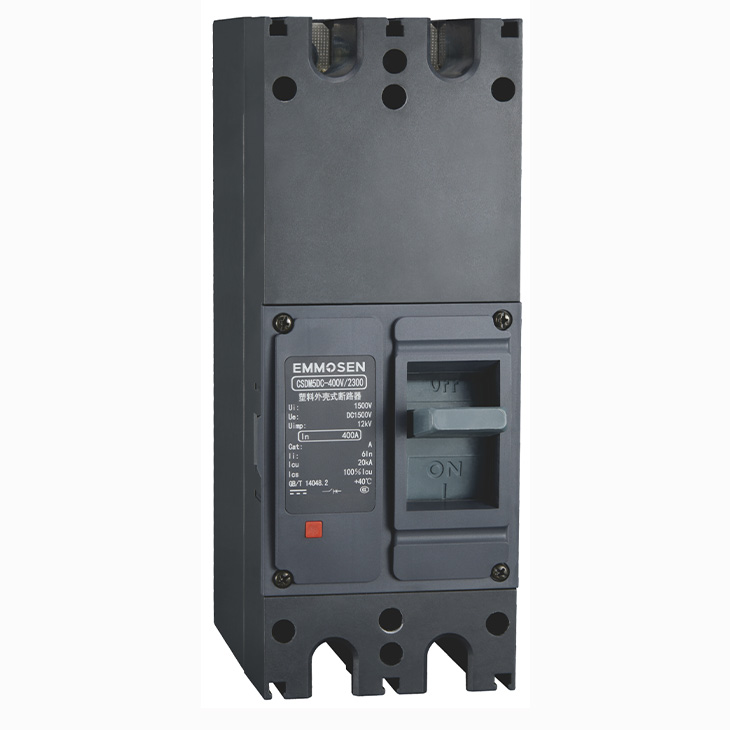

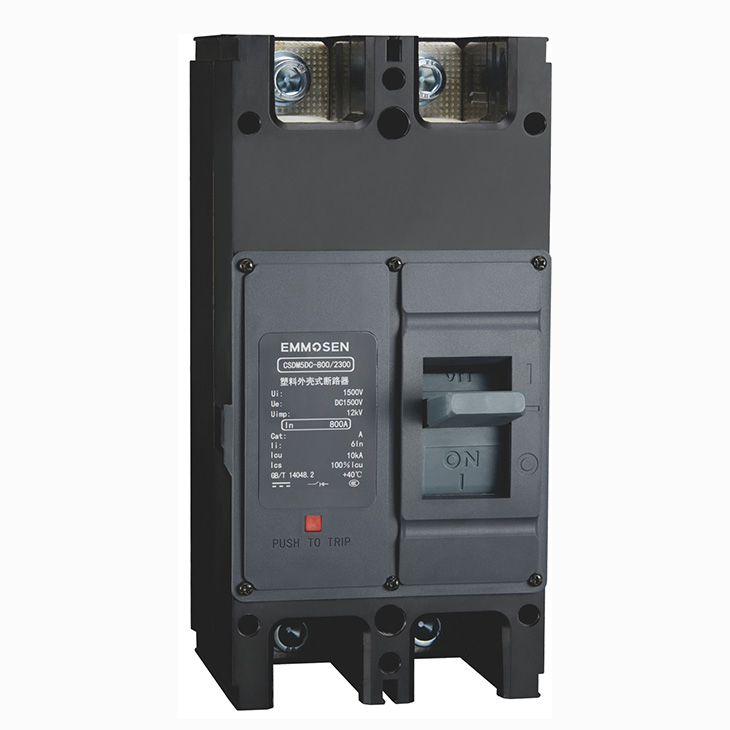

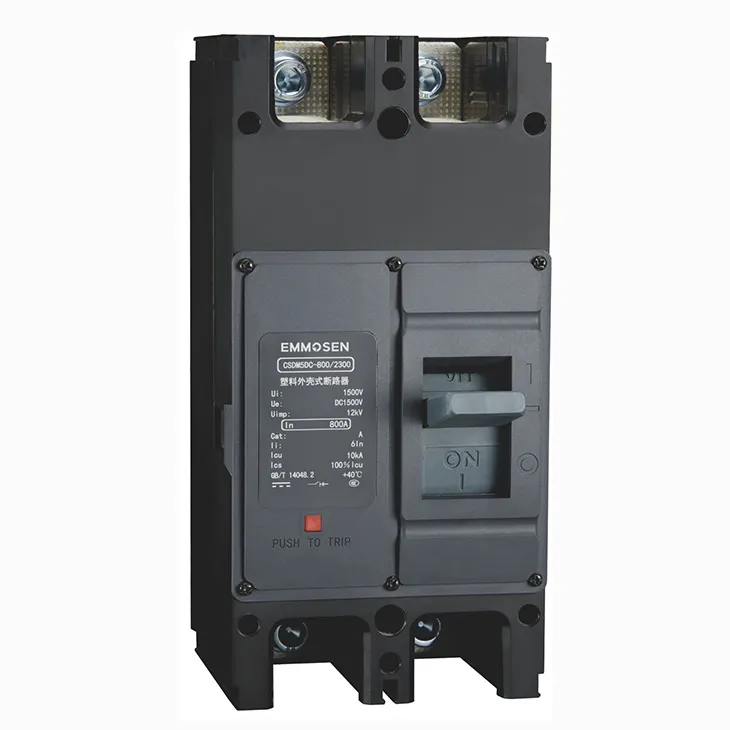

CSDM5DC Series DC Moulded Case Circuit Breaker is specially designed for DC electrical system with rated voltage up to DC1500V and rated current up to 800A. The Circuit Breaker can reliably protect the electrical system when the electrical loading of the system is overloaded or short circuited, specially for PV and wind power application.

Meet the standard:

GB/T14048.1 Low-voltage switchgear and control equipment - Part 1:
General Rules

GB/T14048.2 Low-voltage switchgear and control equipment - Part 2:
Circuit breakers

Normal Working Conditions and Installation Conditions

•The elevation of the installation site can't exceed 2000m;

•The temperature is not higher than +70°C, not lower than -45°C(Over +40°C , use it through capacity reduction, the specific need to negotiate with the manufacturer);

•Atmospheric conditions: such as 90% at 20°C, and taking into account the condensation on the surface due to temperature changes, When the arounding temperature is 40°C, the relative humidity of the atmosphere does not exceed 50%, and a higher relative humidity is allowed at a lower temperature.

•The pollution level is 3;

•Installation category is III;

•Installation magnetic field: The magnetic field of the installation position does not exceed 5 times the earth magnetic field in any direction;

•In a medium without explosion risk, and there is no gas and conductive dust sufficient to corrode metal and destroy insulation in the medium;

•Where there is no snow erosion;

•Installation conditions: It can be installed horizontally or vertically. There should be no significant impact or vibration at the installation place.

•It should not be installed in inflammable and explosive places.

•The circuit breaker has the isolation function, the symbol is

Quick Selection Table

The Cross-sectional Area of The Connecting Wire and The Corresponding Rated Current

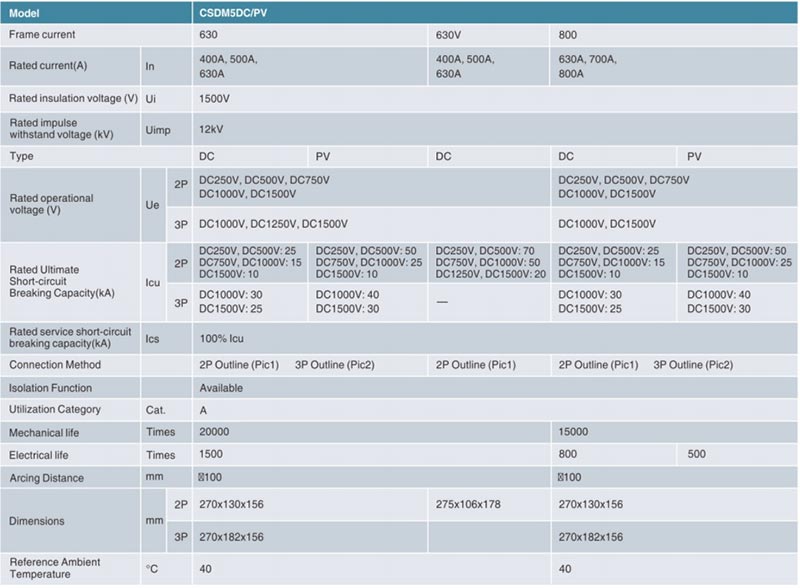

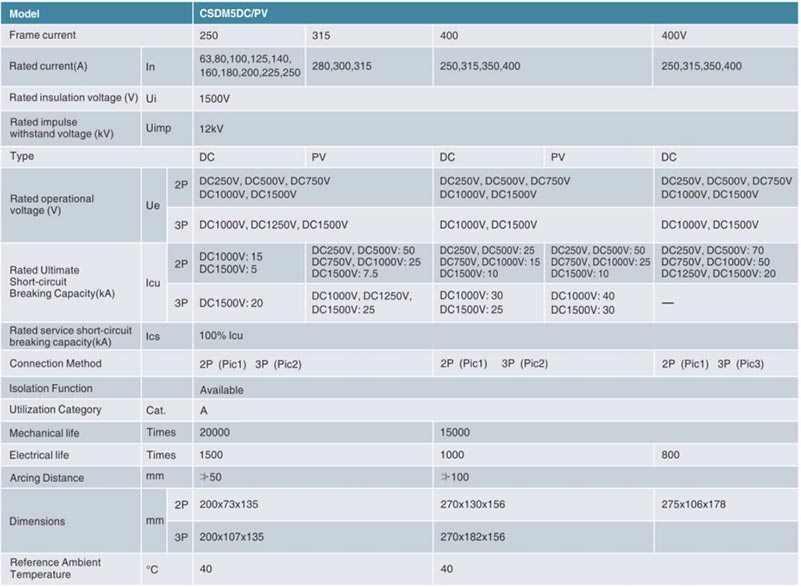

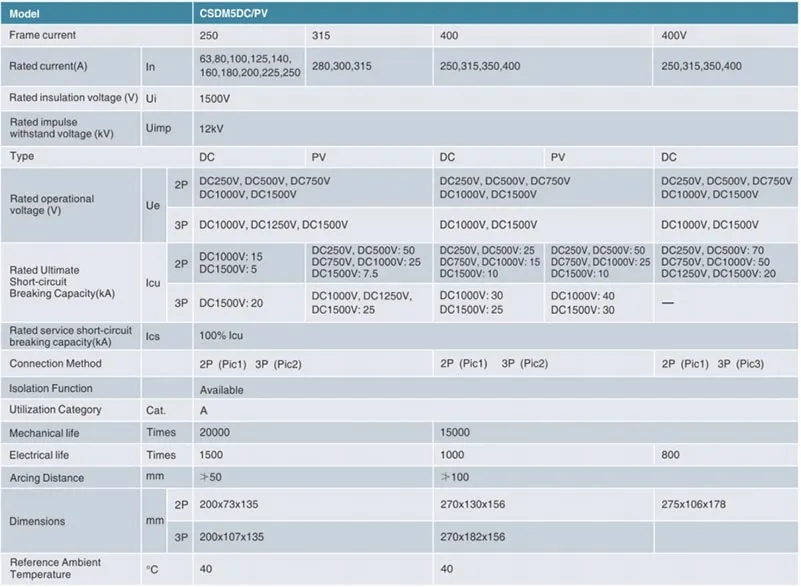

Main Technical Data

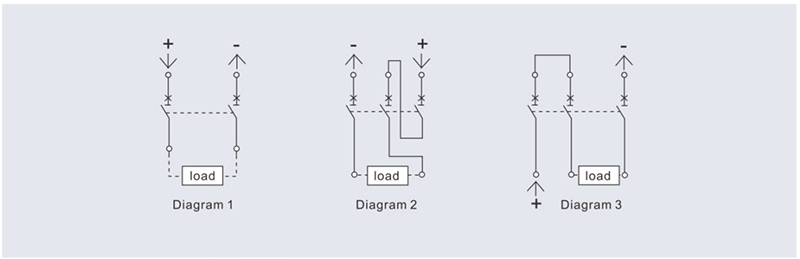

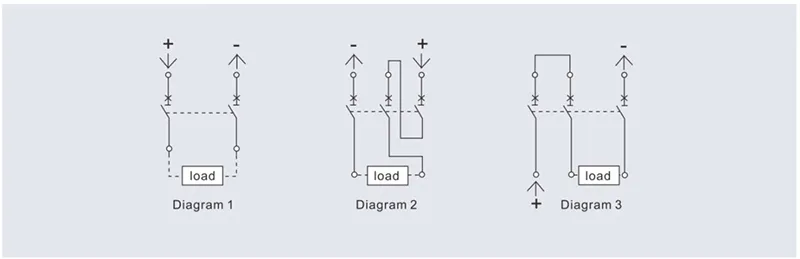

Wiring Diagram

Hold Characteristics

•For power distribution

•Power loss table

•Derating Factor for Rated Operating Current of Thermal-Actuated Release with Changing Ambient Temperature

Note: The product can operate normally when the ambient temperature is below 50°C, and there is no derating

•Altitude Derating

If the altitude exceeds 2000m of the applicable working environment, the electrical performance of the circuit breaker can be referred to the table below
