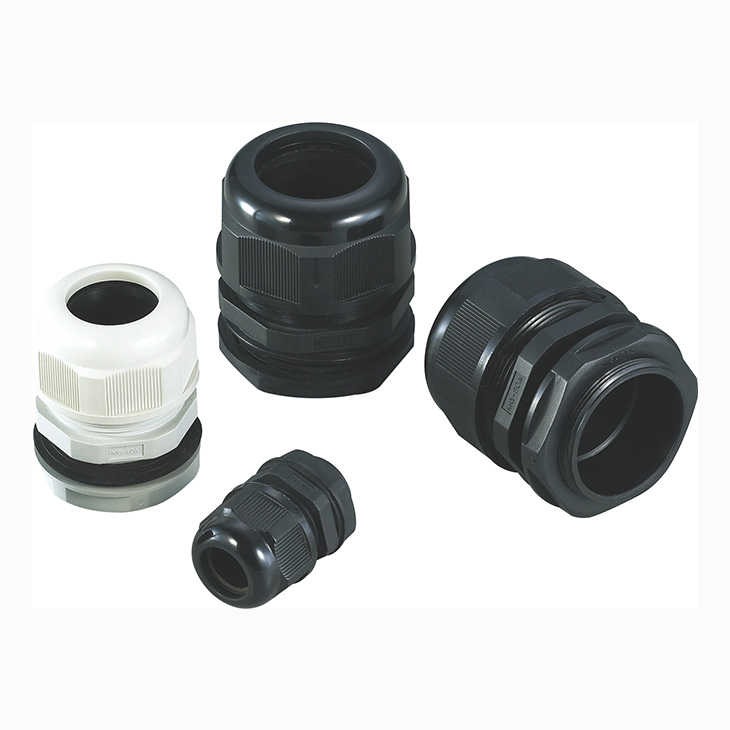

•Material: UL approved nylon PA66, Nitrile Butadiene Rubber(NBR).
•Thead specification: Metric, PG, G, NPT.
•Working temperature: -40°C to 100°C in static state, instantaneous heat resistance up to 120°C, -20°C to 80°C in dynamic
state, instantaneous heat resistance up to 100°C.
•Characteristics: Special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and high ability to resist, salt, acid, alkali, alcohol, grease and general solvents.
•Color: Black, grey as special colors (white, red, blue, dark grey) that can be designed at request.
|
Model |
Thread size |
Thread O.D |
Thread Length |
Thickness |
Cable Range |
Spanner Size |
|
mm |
mm |
mm |
mm |
mm |
mm |
|
|
XH-M12 |
M12x1.5 |
Ø12.2-12.5 |
9 |
3 |
3-7 |
18/16 |
|
XH-M12 |
M12x1.5 |
Ø12.2-12.6 |
9 |
3 |
2-5 |
18/16 |
|
XH-M16 |
M16x1.5 |
Ø16.2-16.5 |
9 |
3 |
4-8 |
22/19 |
|
XH-M16 |
M16x1.5 |
Ø16.2-16.5 |
9 |
3 |
2-6 |
22/19 |
|
XH-M18 |
M18x1.5 |
Ø18.2-18.5 |
9 |
3 |
5-10 |
24/22 |
|
XH-M18 |
M18x1.5 |
Ø18.2-18.5 |
9 |
3 |
3-7 |
24/22 |
|
XH-M20 |
M20x1.5 |
Ø20.2-20.5 |
9 |
5 |
6-12 |
27/24 |
|
XH-M20 |
M20x1.5 |
Ø20.2-20.5 |
9 |
4 |
5-9 |
27/24 |
|
XH-M22 |
M22x1.5 |
Ø22.2-22.5 |
10 |
5 |
10-14 |
30/27 |
|
XH-M22 |
M22x1.5 |
Ø22.2-22.5 |
10 |
5 |
7-12 |
30/27 |
|
XH-M24 |
M24x1.5 |
Ø24.2-24.5 |
10 |
5 |
12-15 |
33/28 |
|
XH-M24 |
M24x1.5 |
Ø24.2-24.5 |
10 |
5 |
10-12 |
33/28 |
|
XH-M25 |
M25x1.5 |
Ø25.2-25.5 |
10 |
5 |
13-15 |
33/28 |
|
XH-M25 |
M25x1.5 |
Ø25.2-25.5 |
10 |
5 |
8-2 |
33/28 |
|
XH-M25 |
M25x1.5 |
Ø25.2-25.5 |
12 |
5 |
13-18 |
33/30 |
|
XH-M25 |
M25x1.5 |
Ø25.2-25.5 |
12 |
5 |
9-16 |
33/33 |
|
XH-M27 |
M27x1.5 |
Ø27.2-27.5 |
12 |
5 |
13-18 |
35/33 |
|
XH-M27 |
M27x1.5 |
Ø27.2-27.5 |
12 |
6 |
9-16 |
35/33 |
|
XH-M30 |
M30x1.5 |
Ø30.2-30.5 |
12 |
6 |
16-21 |
37/37 |
|
XH-M30 |
M30x1.5 |
Ø30.2-30.5 |
12 |
6 |
13-18 |
37/37 |
|
XH-M32 |
M32x1.5 |
Ø32.2-32.5 |
12 |
6 |
16-21 |
39/35 |
|
XH-M32 |
M32x1.5 |
Ø32.2-32.5 |
12 |
6 |
13-18 |
39/35 |
|
XH-M36 |
M36x1.5 |
Ø36.2-37 |
12 |
6 |
18-25 |
45/42 |
|
XH-M36 |
M36x1.5 |
Ø36.2-37 |
12 |
7 |
13-20 |
45/42 |
|
XH-M40 |
M40x1.5 |
Ø40.2-41 |
17 |
7 |
20-26 |
52/52 |
|
XH-M40 |
M40x1.5 |
Ø40.2-41 |
17 |
7 |
22-32 |
52/52 |
|
XH-M50 |
M50x1.5 |
Ø50.5-51 |
19 |
10 |
32-39 |
60/60 |
|
XH-M50 |
M50x1.5 |
Ø50.5-51 |
19 |
10 |
25-36 |
60/60 |
|
XH-M63 |
M63x1.5 |
Ø63.5-64 |
19 |
10 |
37-44 |
74/69 |
|
XH-M63 |
M63x1.5 |
Ø63.5-64 |
19 |
10 |
29-35 |
74/69 |
|
XH-M72 |
M72x1.5 |
Ø72.5-73 |
27 |
15 |
49-52 |
83/77 |
|
XH-M72 |
M72x1.5 |
Ø72.5-73 |
27 |
15 |
32-40 |
83/77 |
