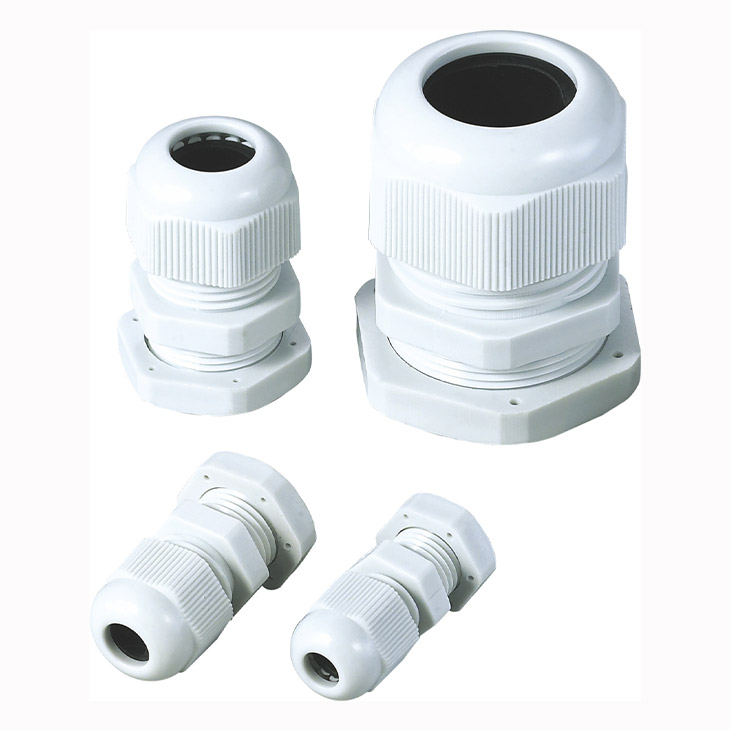

•Material: UL approved nylon PA66, Nitrile Butadiene Rubber(NBR).
•Thead specification: Metric, PG, G, NPT.
•Working temperature: -40°C to 100°C in static state, instantaneous heat resistance up to 120°C, -20°C to 80°C in dynamic state, instantaneous heat resistance up to 100°C.
•Characteristics: Special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and high ability to resist, salt, acid, alkali, alcohol, grease and general solvents.
•Color: Black, grey as special colors (white, red, blue, dark grey) that can be designed at request.
|
Model |
Thread size |
Thread O.D |
Thread Length |
Thickness |
Cable Range |
Spanner Size |
|
mm |
mm |
mm |
mm |
mm |
mm |
|
|
Long Thread PG Type |
||||||
|
XH-PG7-L |
12.5 |
Ø12.6-13 |
15 |
10 |
3-6.5 |
18/16 |
|
XH-PG7-L |
12.5 |
Ø12.6-13 |
15 |
10 |
2-5 |
18/16 |
|
XH-PG9-L |
15.2 |
Ø15.3-15.5 |
15 |
10 |
4-8 |
22/19 |
|
XH-PG9-L |
15.2 |
Ø15.3-15.5 |
15 |
10 |
2-6 |
22/19 |
|
XH-PG11-L |
18.6 |
Ø18.7-19 |
15 |
7-10 |
5-10 |
24/22 |
|
XH-PG11-L |
18.6 |
Ø18.7-19 |
15 |
7-10 |
3-7 |
24/22 |
|
XH-PG13.5-L |
20.4 |
Ø20.5-21 |
15 |
8-11 |
6-11 |
27/24 |
|
XH-PG13.5-L |
20.4 |
Ø20.5-21 |
15 |
8-11 |
5-9 |
27/24 |
|
XH-PG16-L |
22.5 |
Ø22.6-23 |
15 |
11 |
10-14 |
30/27 |
|
XH-PG16-L |
22.5 |
Ø22.6-23 |
15 |
11 |
7-12 |
30/27 |
|
XH-PG21-L |
28.3 |
Ø28.5-29 |
15 |
11 |
13-18 |
36/33 |
|
XH-PG21-L |
28.3 |
Ø28.5-29 |
15 |
11 |
9-16 |
36/33 |
|
Long Thread M Type |
||||||
|
XH-M12-L |
M12x1.5 |
Ø12.2-12.5 |
15 |
10 |
3-6.5 |
18/16 |
|
XH-M12-L |
M12x1.5 |
Ø12.2-12.6 |
15 |
10 |
2-5 |
18/16 |
|
XH-M16-L |
M16x1.5 |
Ø16.2-16.5 |
15 |
10 |
4-8 |
22/19 |
|
XH-M16-L |
M16x1.5 |
Ø16.2-16.5 |
15 |
10 |
2-6 |
22/19 |
|
XH-M18-L |
M18x1.5 |
Ø18.2-18.5 |
15 |
10 |
5-10 |
24/22 |
|
XH-M18-L |
M18x1.5 |
Ø18.2-18.5 |
15 |
10 |
3-7 |
24/22 |
|
XH-M20-L |
M20x1.5 |
Ø20.2-20.5 |
15 |
11 |
6-12 |
27/24 |
|
XH-M20-L |
M20x1.5 |
Ø20.2-20.5 |
15 |
11 |
5-9 |
27/24 |
|
XH-M22-L |
M22x1.5 |
Ø22.2-22.5 |
15 |
11 |
10-14 |
30/27 |
|
XH-M22-L |
M22x1.5 |
Ø22.2-22.5 |
15 |
11 |
7-12 |
30/27 |
|
XH-M25-L |
M25x1.5 |
Ø25.2-25.5 |
15 |
11 |
13-18 |
33/33 |
|
XH-M25-L |
M25x1.5 |
Ø25.2-25.5 |
15 |
11 |
9-16 |
33/33 |
|
XH-M32-L |
M32x1.5 |
Ø32.2-32.5 |
15 |
11 |
18-25 |
39/36 |
|
XH-M32-L |
M32x1.5 |
Ø32.2-32.5 |
15 |
11 |
13-20 |
39/36 |
