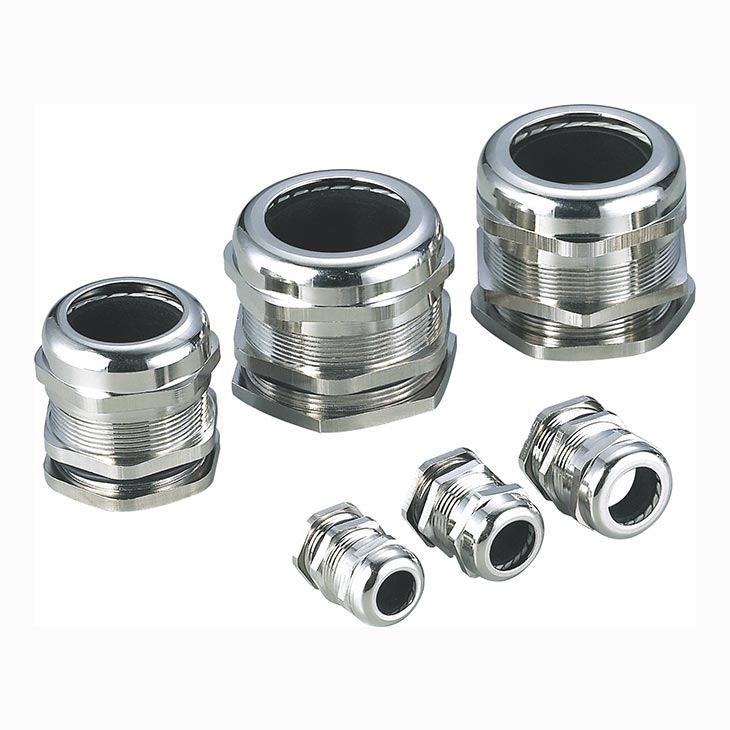

Brass Waterproof Cable Gland M&PG Type

Brand:

Name:Brass Waterproof Cable Gland M&PG Type

FOB Port:Ningbo/Shanghai/Yiwu /Guangzhou/Shenzhen

Terms of Payment:T/T

Update:08/09/2025

Send a Quote

Description

•Material: The main body make of nickel-plated brass, clamp pieces make of UL approved nylon PA. O-sealing make of Nitrile Butadiene Rubber(NBR), weathering rubber(EPDM).

•Thead specification: Metric, PG, G, NPT

•Working temperature: -40°C to 100°C in static state, instantaneous heat resistance up to 120°C, -20°C to 80°C in dynamic state, instantaneous heat resistance up to 100°C.

•Protection Class: lP68(using O-sealing)

Model	Thread size	Thread O.D	Thread Length	Thickness	Cable Range	Spanner Size
Model	mm	mm	mm	mm	mm	mm
M Type
XH-TM12	M12x1.5	12.1-12.3	6	3	3-6.5	14
XH-TM16	M16x1.5	16.1-16.3	6	3	4-8	18
XH-TM18	M18x1.5	18.1-18.3	6	3	5-10	20
XH-TM20	M20x1.5	20.1-20.3	7	4	6-12	22
XH-TM22	M22x1.5	22.1-22.5	7	4	8-14	24
XH-TM24	M24x1.5	24.1-24.5	7	4	8-14	27
XH-TM25	M25x1.5	25.1-25.5	7	4	10-16	28
XH-TM27	M27x1.5	27.1-27.5	8	4	11-16	30
XH-TM30	M30x1.5	30.1-30.5	8	4	11-16	34
XH-TM32	M32x1.5	32.1-32.5	8	4	11-16	36
XH-TM32	M32x1.5	32.1-32.5	8	4	18-25	40
XH-TM36	M36x1.5	36.1-36.5	8	4	14-21	40
XH-TM40	M40x1.5	40.2-40.5	9	5	16-25	45
XH-TM40	M40x1.5	40.2-40.5	9	5	22-32	50
XH-TM48	M48x1.5	48.2-48.5	9	5	22-32	55
XH-TM56	M56x1.5	56.2-56.5	9	5	30-38	60
XH-TM63	M63x1.5	63.2-63.7	10	5	37-44	70
XH-TM64	M64x1.5	63.2-63.7	10	5	37-44	70
XH-TM75	M75x1.5	75.2-75.7	10	5	42-52	78
XH-TM88	M88x1.5	88.5-89.0	15	8	65-70	98
PG Type
XH-TPG7	12.5	12.6-13	6	3	3-6.5	14
XH-TPG9	15.2	15.3-15.5	6	3	4-8	17
XH-TPG11	18.6	18.7-19.0	6	3	5-10	20
XH-TPG13.5	20.4	20.5-21.0	7	4	6-11	22
XH-TPG16	22.5	22.6-23.0	7	4	10-13	24
XH-TPG21	28.3	28.4-29.0	7	4	13-18	30
XH-TPG29	37.0	37.2-37.5	8	4	18-25	40
XH-TPG36	47.0	47.2-47.5	8	4	22-32	50
XH-TPG42	54.0	54.3-54.7	9	5	32-38	60
XH-TPG48	59.3	59.5-60.0	10	5	37-44	65
XH-TPG63	70.8	71.0-71.5	10	5	42-52	78
